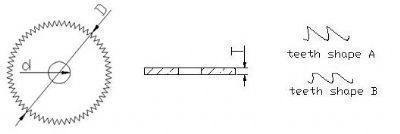

规格型号 Type | 外径D(mm) | 内径d(mm) | 厚度T(mm) | 常用齿数Z Number of teeth | C0803-S-A(B)Z | 8 | 3 | 0.2~2 | 20,24,32 | C1205-S-A(B)Z | 12 | 5 | 0.2~2 | 20,24,32,40 | C1605-S-A(B)Z | 16 | 5 | 0.2~2 | 20,24,32,40,48 | C2005-S-A(B)Z | 20 | 5 | 0.2~2 | 24,32,48,64 | C2508-S-A(B)Z | 25 | 8 | 0.2~2 | 24,32,48,64,80 | C3208-S-A(B)Z | 32 | 8 | 0.2~3 | 40,48,68,80 | C4008-S-A(B)Z | 40 | 8 | 0.2~3 | 40,64,80,100 | C4010-S-A(B)Z | 40 | 10 | 0.2~3 | 40,64,80,100 | C50127-S-A(B)Z | 50 | 12.7 | 0.2~4 | 40,64,80,100 | C5013-S-A(B)Z | 50 | 13 | 0.2~4 | 40,64,80,100 | C60127-S-A(B)Z | 60 | 12.7 | 0.2~5 | 40,64,80,100 | C6016-S-A(B)Z | 60 | 16 | 0.2~5 | 40,64,80,100 | C70127-S-A(B)Z | 70 | 12.7 | 0.2~5 | 48,64,72,90,100 | C7022-S-A(B)Z | 70 | 22 | 0.2~5 | 48,64,72,90,100 | C70254-S-A(B)Z | 70 | 25.4 | 0.2~5 | 48,64,72,90,100 | C7522-S-A(B)Z | 75 | 22 | 0.2~5 | 64,72,90,100 | C75254-S-A(B)Z | 75 | 25.4 | 0.2~5 | 64,72,90,100 | C8022-S-A(B)Z | 80 | 22 | 0.2~5 | 64,72,100,120 | C80254-S-A(B)Z | 80 | 25.4 | 0.2~5 | 64,75,100,120 | C9022-S-A(B)Z | 90 | 22 | 0.2~5 | 72,90,100,120 | C90254-S-A(B)Z | 90 | 25.4 | 0.2~5 | 72,90,100,120 | C10022-S-A(B)Z | 100 | 22 | 0.2~5 | 90,100,120,160 | C100254-S-A(B)Z | 100 | 25.4 | 0.2~5 | 90,100,120,160 | C10032-S-A(B)Z | 100 | 32 | 0.2~5 | 90,100,120,160 | C11022-S-A(B)Z | 110 | 22 | 0.2~5 | 100,120,140,160 | C110254-S-A(B)Z | 110 | 25.4 | 0.2~5 | 100,120,140,160 | C11032-S-A(B)Z | 110 | 32 | 0.2~5 | 100,120,140,160 |
CPM Carbide Circular Discs provides rough or finished part (i.e. with finished and polished surface) in every size.
CPM carbide disc have high hardness and T.R.S. and good wearing resistance to process into paper cutter,tobacco cutter and so on.We sell and provide assistance to wholesalers and retailers - specialising in the various production sectors. Among the most interesting are electric manifolds, textile machinery,mechanical, electromechanical, keys, plastics and composites, and printed circuit boards.
*Please contact us for special sizes and minimum order quantity.
欢迎联系我们获知特殊尺寸和最低定货量 |
