Carbide anvils and pressure cylinders |
|
|

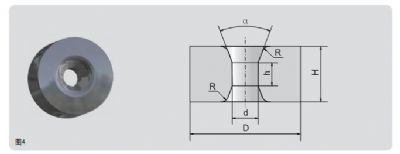

Cemented carbide pressure cylinders as sintered |
|
|
< 型号 Type | 尺寸Dimensions | D | H | d | h | a | R | DG250-1 | 171.5(+2.5~-2.5) | 111.5(+2.0~0) | 49.0(0~-2.0) | 54 | 59 | 24.5 | DG250-2 | 207.5(+2.5~-2.5) | 121.5(+2.5~0) | 49.0(0~-2.0) | 51 | 11 | 30.6 | DG241 | 181.5(+2.5~-2.5) | 108.5(+2.0~0) | 40.0(0~-2.0) | 50 | 11 | 30 | DG256 | 219.5(+2.5~-2.5) | 112.5(+2.0~0) | 55.0(0~-2.0) | 54 | 59 | 24.5 | DG268 | 281.5(+3.5~-2.5) | 141.5(+2.0~0) | 67.5(0~-2.0) | 65 | 82 | 25 | |
|
